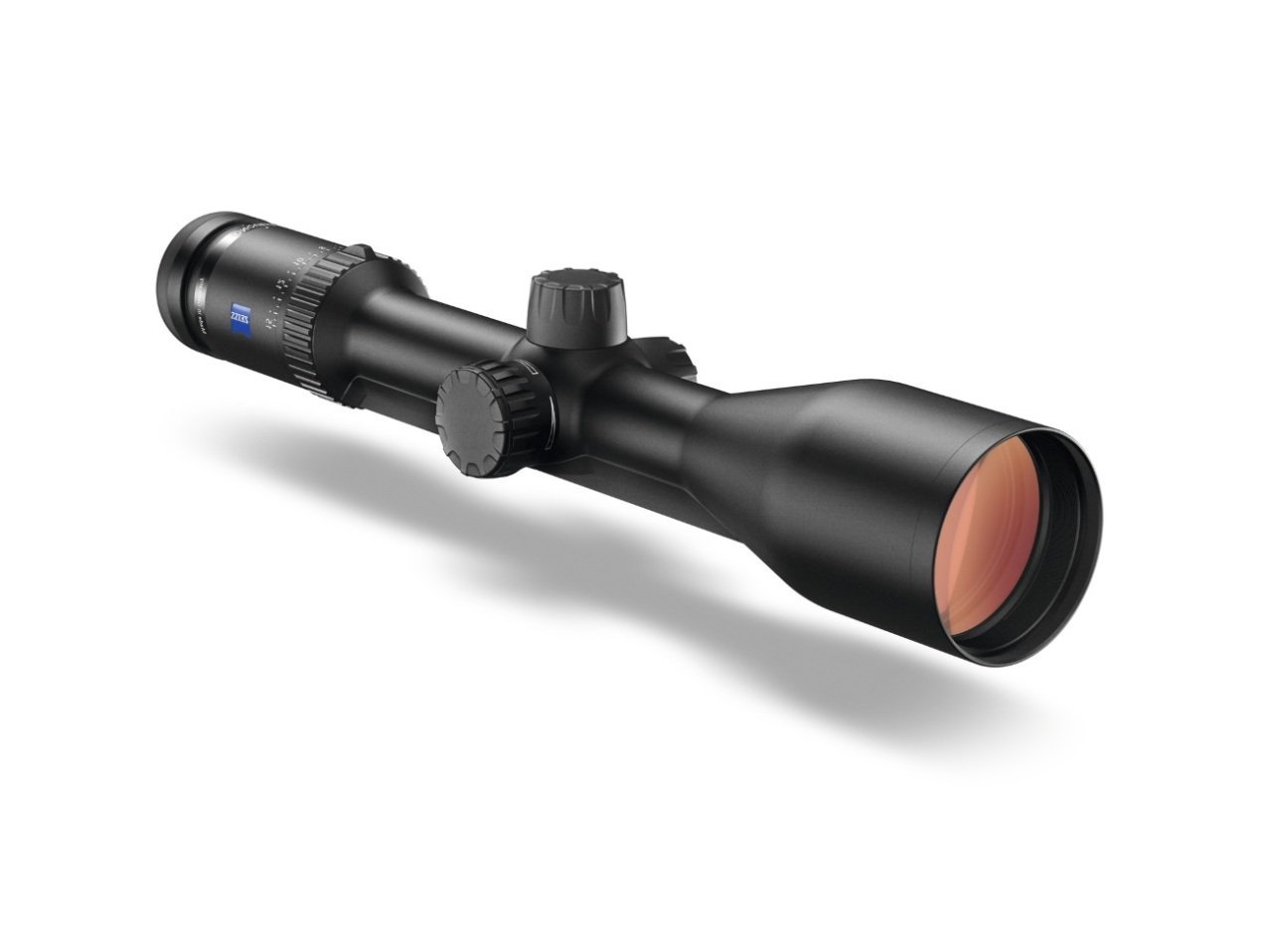

CONQUEST V6 2.5-15x56



ZEISS CONQUEST V6 2.5-15X56 BALİSTİK DÜŞME AYAR KULELİ TÜFEK DÜRBÜNÜ

TEKNIK ÖZELLİKLER:
-------------------------------------
BÜYÜTME : 2.5x-15x
OBJEKTİF ÇAPI : 56 mm
GÖRÜŞ ALANI ( 100 m) : 2.5x-16.4 M. / 15x-2.7m
BAKIŞ ARALIĞI : 90 mm
SU GEÇIRMEZLİK : 400 mbar-max
AĞIRLIK : 725 gr
UZUNLUK : 352 mm
TÜP ÇAPI : 30 mm



Magnification2.5 x15 xEffective lens diameter24.3 mm56 mmExit pupil diameter9.7 mm3.7 mmTwilight factor7.129Field of view at 100m16.4 m2.7 mOjective viewing angle
9.4 °1.6 °Diopter adjustment range+2 | -3 dptEye relief90 mmAdjustment range at 100 m
200 cmAdjustment per click at 100m1 cmCentre tube diameter30 mmEyepiece tube diameter45.5 mmObjective tube diameter62 mmLotuTec® / Nitrogen filledyes / yesWater resistance
400 mbarOperating temperature
-25 / +50ºCLength352 mmWeight without inner rail690 gWeight with inner rail725 g
